Product Type： Anti Metal Tag
Material: ABS
Chip: U code 9/Higgs 9/U code 8
Size: 94*28*7.7mm/79*31*8.3mm Customized size
Printing: Offset printing/Screen printing
Surface: Glossy/Matt
Customized Support: Logo customization, shape customization
MOQ: 20 pieces/bag, customized packaging
Product Introduction
Products Description
| Material | ABS |
| Protocol | ISO18000-6C |
| Size | 94*28*7.7mm/79*31*8.3mm/90*28*8mm/135*21*11mm(customized size) |
| Read distance | 1-14m Dependent on chip |
| Available Crafts | Laser (logo/ barcode/ numbering/ QR code),Silk screen text/ pattern |
| Application | asset management, warehouse management, logistics tracking,etc |
| Installation | Screws,adhesive backing,tying |
ABS asset management tags are widely used in logistics, inventory management, and asset tracking, particularly in environments that require high durability, Anti-metallic properties and waterproof performance. Due to the excellent impact resistance and heat resistance of ABS material, these tags can maintain stable read and write performance under harsh conditions, helping to ensure real-time monitoring and management of assets. Their advantages also include being lightweight and secure, with the ability to be customized according to different application needs to meet specific shape and size requirements.

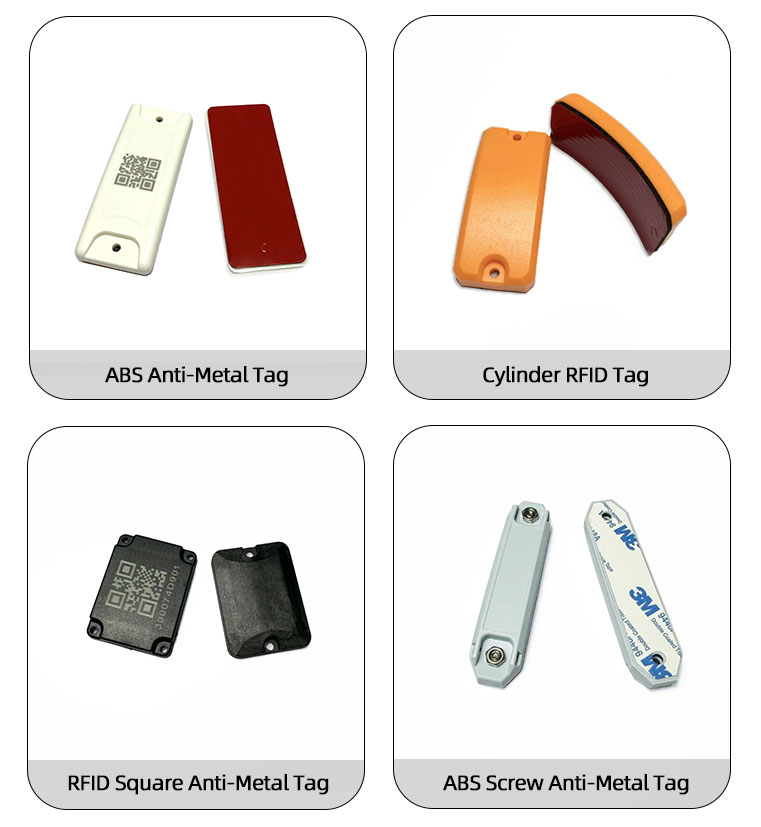

PRODUCT SHOW

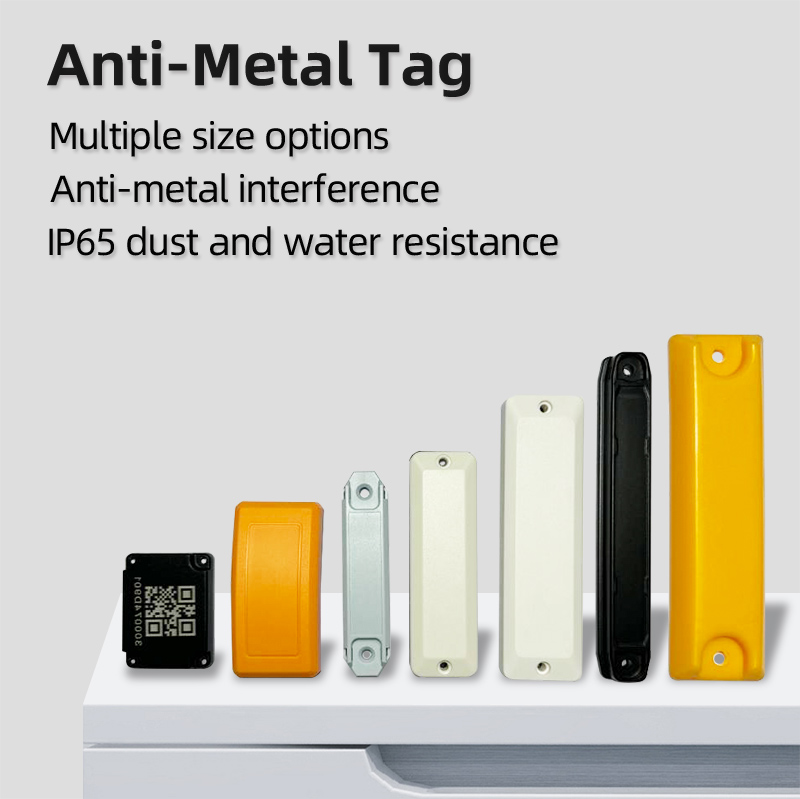

ABS asset management tags are encapsulated in ABS material and come in various specifications and installation methods. They feature waterproof, high and low temperature resistance, abrasion resistance, and corrosion resistance. These tags can also be customized through processes such as printing logos, serial numbers, barcodes, and QR codes.
Chip Avalable
| Chip model | Type | Frequency | Memory | Protocol |
| FM4442 | Contact | 256B | ISO7816 | |
| FM4428 | 1KB | |||
| TK4100 | Contactless | 125KHZ | 256B | ISO11785 |
| EM4200 | 64B | |||
| EM4305 | 64B | |||
| T5577 | 330B | |||
| FM1208-10(7+1） CPU) | 13.56MHz | 8KB | ISO14443A | |
| NTAG213 | 1KB | |||
| NTAG215 | 4KB | |||
| NTAG216 | 144B | |||
| Mifare S50 | 504B | |||
| Mifare ultralight | 64B | |||
| Mifare Ultralight EV1 | 512B | |||
| I-CODE 2/I-CODE SLI | 1KB | ISO15693 | ||
| I-CODE SLI-X | 1KB | |||
| I-CODE SLI-S | 2KB | |||
| Impinj Monza4QT | 860MHz~960MHz | 128bit | ISO18000-6C | |
| Impinj Monza R6 | 96bit | |||
| Impinj Monza M730 | 128bit | |||
| Impinj Monza M780 | 496bit | |||
| Impinj Monza M781 | 128bit | |||
| Alien Higgs9 | 96bit | |||
| NXP U code 8 | 128bit | |||
| NXP U code 9 | 96bit |
If the chip you need is not listed in the table, please contact customer service for more information about the chip mode
Product Packaging
 |  |  |
| RFID CARD | RFID TAG | RFID LAUNDRY TAG |
 |  |  |
| RFID WRISTBAND | RFID CABLE TIE TAG | PAPER CARD |
Company Profile
Guangzhou Jiezhong Intelligent Technology Co., Ltd. was established in 2009 and is located in the National Economic and Technological Development Zone, Zengcheng District, Guangzhou City. The factory covers an area of 4120 square meters. Our company has passed ISO9001 quality management system certification and is a professional manufacturer of cards and labels in various materials. Including PVC cards, NFC cards, RFID tags, RFID wristbands, RFID washing tags, PLA biodegradable environmental cards, paper cards and other products. Our experienced staff are dedicated to strict quality control and thoughtful customer service to always meet your requirements and ensure customer satisfaction.
Our products through a number of qualification certification, please rest assured to use
Jiezhong has powerful production lines and advanced production equipment, including Heidelberg printing machines, automatic ultrasonic winding machines, digital laminating machines, automatic patch machines, automatic thread knitting machines, automatic packaging machines, UV inkjet machines, laser machines, etc.
