Product Type： RFID PCB Tag
Material: PCB material + absorbing material/adhesive
Chip: FUDAN F08/I-CODE SLI-X/NTAG 213
Frequency: 13.56Mhz
Size: Φ20mm/Φ14.4mm/12*12mm
Read distance: 1-4cm (depends on using condition)
Available Crafts: Screen printing numbering
Customized Support: Logo customization, shape customization
MOQ: 50 pieces/bag, customized packaging
Product Introduction
Products Description
| Material | PCB + absorbing material/adhesive |
| working Mode | Read & Write |
| Protocol | ISO 14443A/ISO 15693 |
| Size | Φ20mm/6*16mm/Φ14.4mm/12*12mm |
| Read distance | 1-4cm Dependent on chip |
| Available Crafts | Screen printing numbering |
| Application | NFC products, electronic toys, electronics, products, food, tobacco, alcohol, medicines, cosmetics, spare parts and some embedded applications |
PCB tags are micro tags made based on phenolic resin (FR-4) technology. They are lightweight, high temperature resistant, and waterproof. They can be attached to various items to track, identify, and manage items. They are widely used in electronic toys, food, tobacco, alcohol, medicine, cosmetics, accessories, and other fields. PCB micro tags can be equipped with different sensors and communication chips to achieve a wider range of application scenarios.

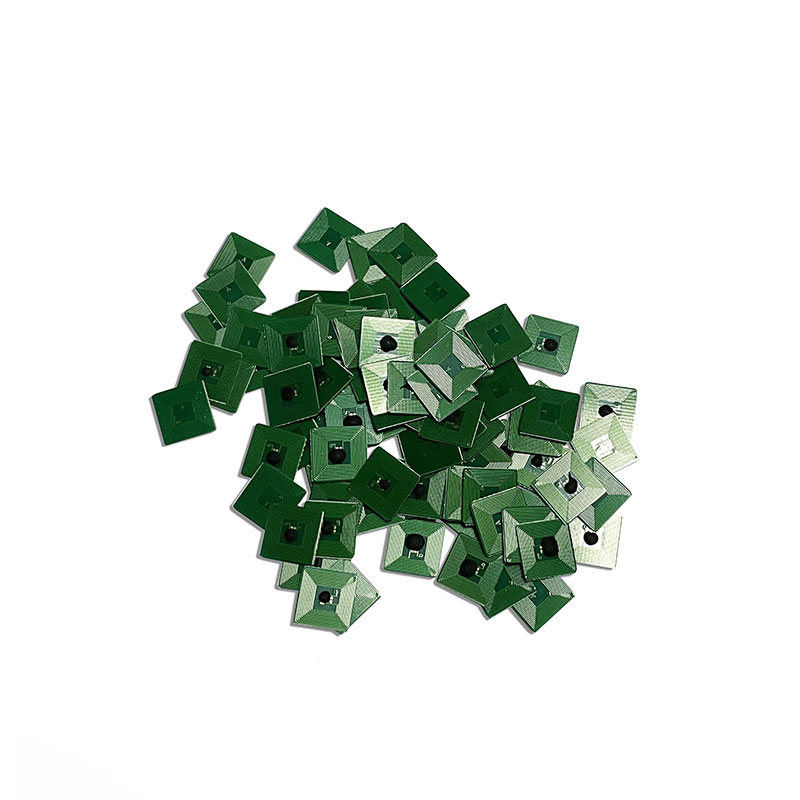

PRODUCT SHOW

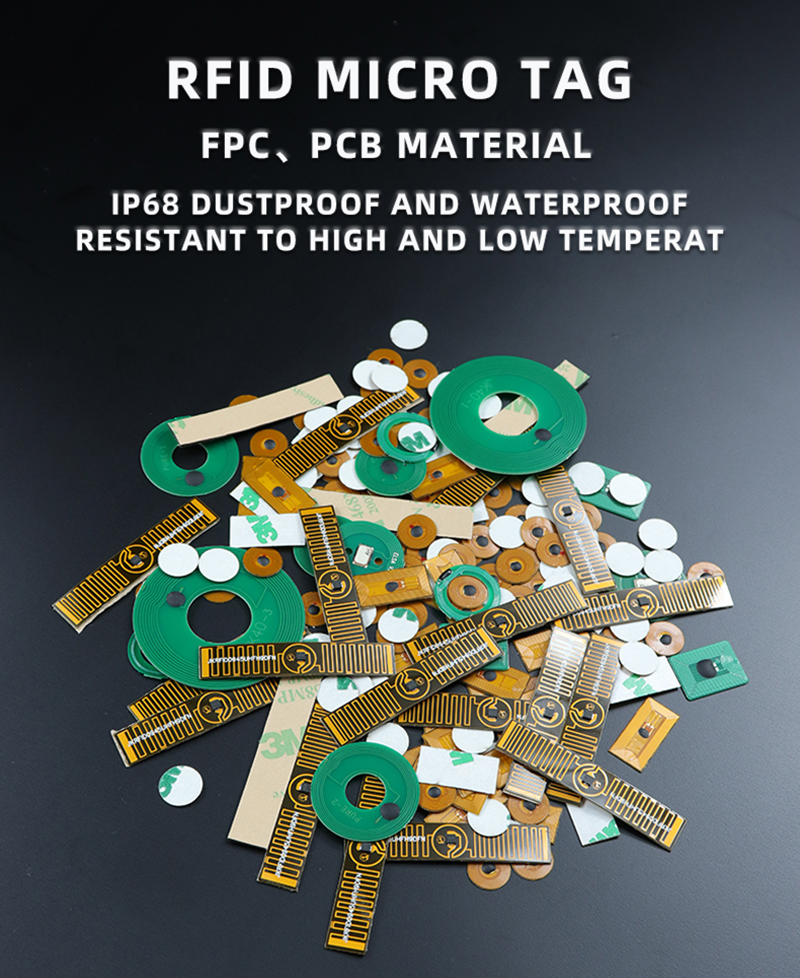

Micro PCB tags are made of phenolic resin (FR-4) material. They are waterproof, high temperature, acid and alkali resistant and can be used in complex environments. These tags are light weight, thin, high hardness, and available in a variety of sizes and frequencies.
Chip Avalable
| Chip model | Type | Frequency | Memory | Protocol |
| FM4442 | Contact | 256B | ISO7816 | |
| FM4428 | 1KB | |||
| TK4100 | Contactless | 125KHZ | 256B | ISO11785 |
| EM4200 | 64B | |||
| EM4305 | 64B | |||
| T5577 | 330B | |||
| FM1208-10(7+1） CPU) | 13.56MHz | 8KB | ISO14443A | |
| NTAG213 | 1KB | |||
| NTAG215 | 4KB | |||
| NTAG216 | 144B | |||
| Mifare S50 | 504B | |||
| Mifare ultralight | 64B | |||
| Mifare Ultralight EV1 | 512B | |||
| I-CODE 2/I-CODE SLI | 1KB | ISO15693 | ||
| I-CODE SLI-X | 1KB | |||
| I-CODE SLI-S | 2KB | |||
| Impinj Monza4QT | 860MHz~960MHz | 128bit | ISO18000-6C | |
| Impinj Monza R6 | 96bit | |||
| Impinj Monza M730 | 128bit | |||
| Impinj Monza M780 | 496bit | |||
| Impinj Monza M781 | 128bit | |||
| Alien Higgs9 | 96bit | |||
| NXP U code 8 | 128bit | |||
| NXP U code 9 | 96bit |
If the chip you need is not listed in the table, please contact customer service for more information about the chip mode
