Product Type: RFID Laundry Tag
Material: PPS
Chip: Ntag 213/Ntag 215/I CODE SLIX
Size: φ20mm/30mm
Read distance: 1-4cm according to the reader
Printing: Laser engraving
Customized Support: Logo customization, shape customization
Package: 50-100 pieces/bag, customized packaging
Product Introduction
Products Description
Material | Textile,Silicone, PPS ect |
working Mode | Read & Write |

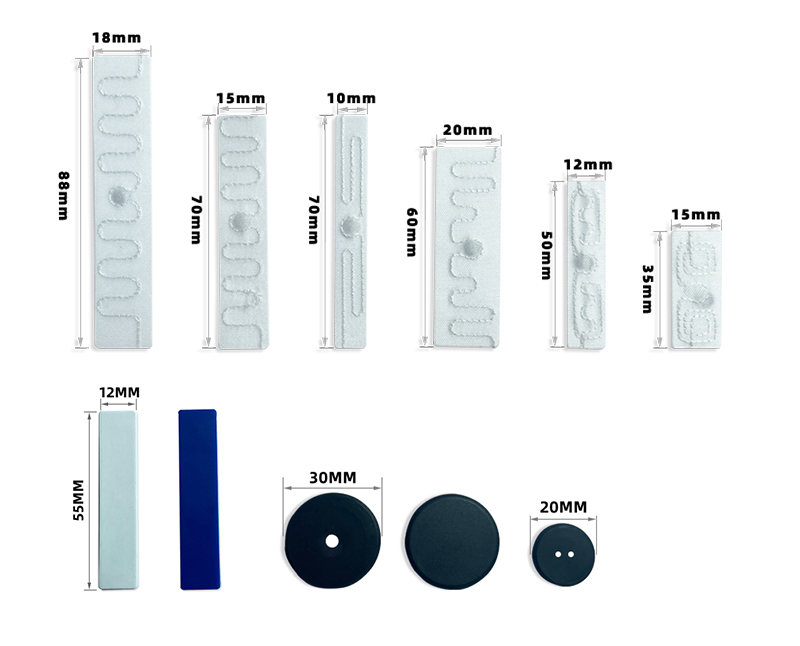

Size | Texitile:70*15mm/75*15mm/55*10mm/88*18mm or customized size |
PPS:Diameter 20/30mm or customized size | |
Silicone:55*12mm | |
Read distance | HF :0-4cm UHF:1m-6m Dependent on chip |
Available Crafts | Serial numbers, barcode,QR code |
Application | Laundry solution, wash store, industrial washing, hotel cloth management, supermarket/ cloth store management, etc |
Installation | 1.Sewing directly 2.Sewing after putting in pocket 3.Cover tag by thermal tape then heat sealing |
RFID laundry tags are tags with radio frequency identification functions that can be used to manage and track laundry items. This type of tag is usually made of high-temperature resistant materials, can withstand high-temperature washing and drying processes, and has a long service life. RFID laundry tags enable the efficient management of rapid collection, sorting, automatic inventory, and collection in the laundry industry, greatly improving work efficiency and reducing error rates. It can scan and identify in batches without a single scan, facilitating manual transfer and management work, and recording laundry information, saving personnel expenses and reducing costs. In addition, it can generate various reports, query and historical tracking at any time, and print out the required information.
PRODUCT SHOW
RFID laundry tags are packaged using non-woven fabric, silicone, or PPS materials, and come in various specifications. They possess features such as water resistance, durability under high and low temperatures, abrasion resistance, and corrosion resistance. These tags can also be customized with processes like serial number printing, barcodes, and QR codes. They are capable of withstanding more than 200 industrial wash cycles.
Chip Avalable
Chip model | Type | Frequency | Memory | Protocol |
FM4442 | Contact | 256B | ISO7816 | |
FM4428 | 1KB | |||
TK4100 | Contactless | 125KHZ | 256B | ISO11785 |
EM4200 | 64B | |||
EM4305 | 64B | |||
T5577 | 330B | |||
FM1208-10(7+1) CPU) | 13.56MHz | 8KB | ISO14443A | |
NTAG213 | 1KB | |||
NTAG215 | 4KB | |||
NTAG216 | 144B | |||
Mifare S50 | 504B | |||
Mifare ultralight | 64B | |||
Mifare Ultralight EV1 | 512B | |||
I-CODE 2/I-CODE SLI | 1KB | ISO15693 | ||
I-CODE SLI-X | 1KB | |||
I-CODE SLI-S | 2KB | |||
Impinj Monza4QT | 860MHz~960MHz | 128bit | ISO18000-6C | |
Impinj Monza R6 | 96bit | |||
Impinj Monza M730 | 128bit | |||
Impinj Monza M780 | 496bit | |||
Impinj Monza M781 | 128bit | |||
Alien Higgs9 | 96bit | |||
NXP U code 8 | 128bit | |||
NXP U code 9 | 96bit |
If the chip you need is not listed in the table, please contact customer service for more information about the chip mode
