Product Type： RFID Pallet Tag
Material： PVC
Size： 85.5mm*54mm standard size(customizable size)
Thickness：0.8-2mm(customizable)
Read distance： 1-10M (depends on using condition)
Surface：Glossy/Frosted/Matt
Customized Support： Logo customization, shape customization
Crafts：Spot UV ,Serial number ,QR code ,Magnetic strip ,White signature panel ,Hot stamping sliver /golden,Hologram ,Transparent,Embossed number ,scratched off
Printing Type：Offset printing/Screen printing
MOQ：500pcs
Product Introduction
Products Description
UHF tag card is an RFID tag card that uses ultra-high frequency electromagnetic waves for communication. The tag card has the characteristics of high-speed reading, long reading distance, and large storage capacity. It is widely used in logistics, supply chain management, inventory management, vehicle management, factory automation and other fields. Passive RFID technology is usually used, that is, the tag card has no battery, but can obtain energy from the electromagnetic waves emitted by the reader to stimulate the internal chip to achieve the purpose of identifying, locating, and tracking items.
| Chip model | Type | Frequency | Memory | Protocol |
| FM4442 | Contact | 256B | ISO7816 | |
| FM4428 | 1KB | |||
| TK4100 | Contactless | 125KHZ | 256B | ISO11785 |
| EM4200 | 64B | |||
| EM4305 | 64B | |||
| T5577 | 330B | |||
| FM1208-10(7+1） CPU) | 13.56MHz | 8KB | ISO14443A | |
| NTAG213 | 1KB | |||
| NTAG215 | 4KB | |||
| NTAG216 | 144B | |||
| Mifare S50 | 504B | |||
| Mifare ultralight | 64B | |||
| Mifare Ultralight EV1 | 512B | |||
| I-CODE 2/I-CODE SLI | 1KB | ISO15693 | ||
| I-CODE SLI-X | 1KB | |||
| I-CODE SLI-S | 2KB | |||
| Impinj Monza4QT | 860MHz~960MHz | 128bit | ISO18000-6C | |
| Impinj Monza R6 | 96bit | |||
| Impinj Monza M730 | 128bit | |||
| Impinj Monza M780 | 496bit | |||
| Impinj Monza M781 | 128bit | |||
| Alien Higgs9 | 96bit | |||
| NXP U code 8 | 128bit | |||
| NXP U code 9 | 96bit |
If the chip you need is not listed in the table, please contact customer service for more information about the chip model.

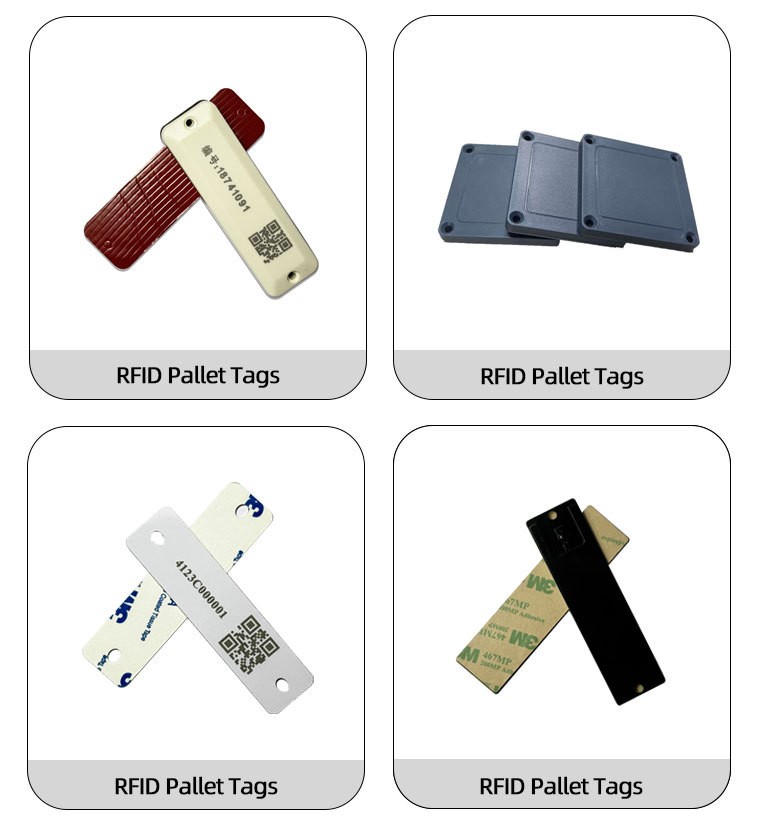

PRODUCT SHOW

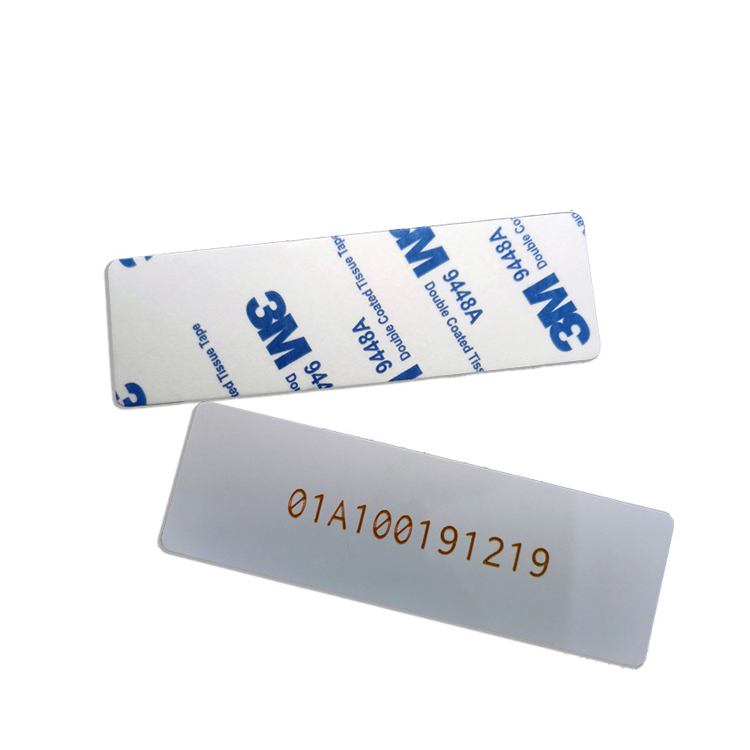

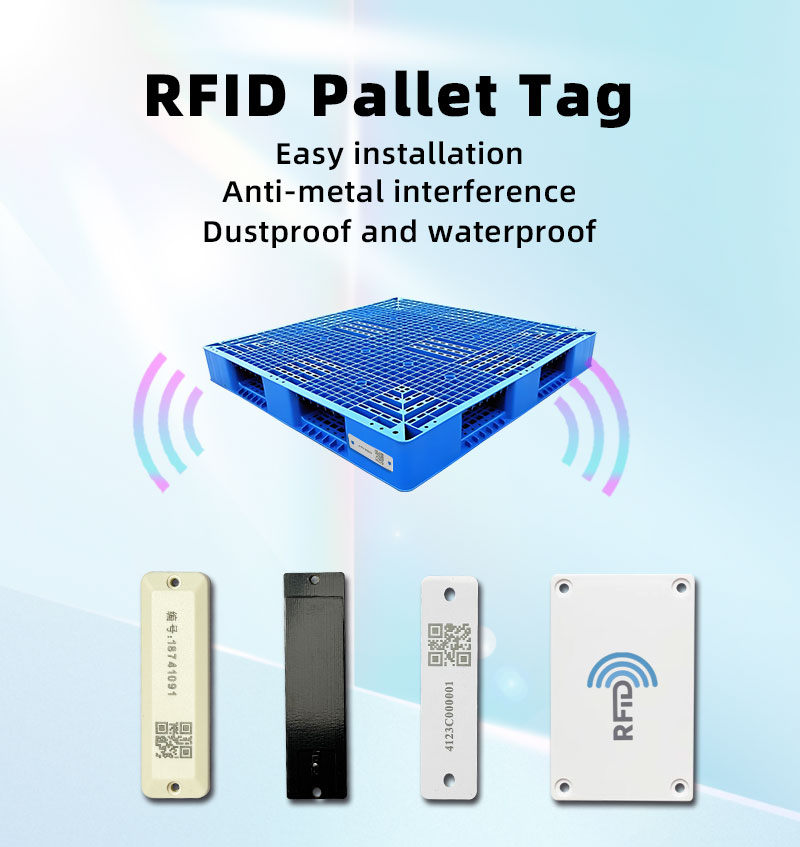

We can provide customized PVC labels with various sizes of holes/no holes, and this UHF RFID tray label operates at frequencies ranging from 860MHz to 960MHz. Used for logistics pallet container tracking or retail applications. It can be fixed on the pallet/Flat noodles and can cover a reading range of 10 meters.
Optional Craft
We provide personalized customization needs for different customers: Barcodes, Card finishes, Card material, Card thickness, Die cuts, Embossing, Encoding, Foil stamping, Metallic, Spot UV, Magnetic Stripe, Scratch offs, Signature panels, Variable data, etc.
Related Products
 |  |  |
| RFID CARD | RFID TAG | RFID LAUNDRY TAG |
 |  |  |
| RFID WRISTBAND | RFID CABLE TIE TAG | PAPER CARD |
Company Profile
Guangzhou Jiezhong Intelligent Technology Co., Ltd. was established in 2009 and is located in the National Economic and Technological Development Zone, Zengcheng District, Guangzhou City. The factory covers an area of 4120 square meters. Our company has passed ISO9001 quality management system certification and is a professional manufacturer of cards and labels in various materials. Including PVC cards, NFC cards, RFID tags, RFID wristbands, RFID washing tags, PLA biodegradable environmental cards, paper cards and other products. Our experienced staff are dedicated to strict quality control and thoughtful customer service to always meet your requirements and ensure customer satisfaction.
Certification
Our products through a number of qualification certification, please rest assured to use
Advanced equipment
Jiezhong has powerful production lines and advanced production equipment, including Heidelberg printing machines, automatic ultrasonic winding machines, digital laminating machines, automatic patch machines, automatic thread knitting machines, automatic packaging machines, UV inkjet machines, laser machines, etc.
Product Packaging
According to the different size of the card packaging, CR80 conventional size RFID card 200 / box, PVC card 250 / box, paper card 500 / box.There are ten boxes of cards in each carton.The surface of each carton is covered with a film for waterproof and moisture-proof during transportation to ensure the quality of the card.
The above packaging pictures are conventional card packaging pictures, can be customized according to your requirements of different packaging box number and size
